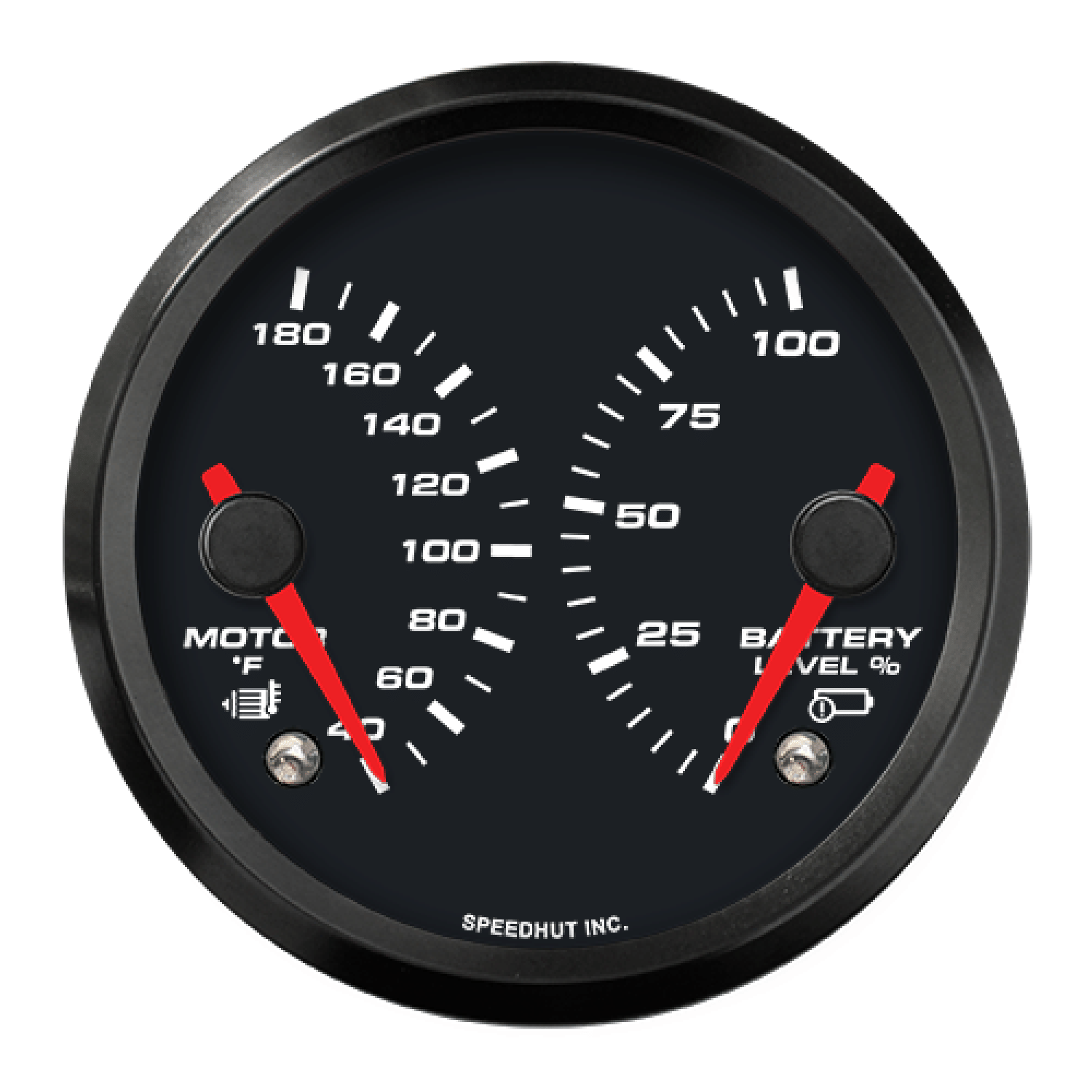

3-3/8" EV CAN-Bus Dual Gauge | Motor Temp 40-180F + Battery Level 0-100% with Warnings | Orion / Thunderstruck / Zero EV

SKU: FOR3-DG5-EV
Be the first to review this product
$244.36 USD
Combines motor temperature and EV battery level (SOC) in one dual gauge so two critical EV readings stay clear and easy to track at a glance. Pulls data directly from the 500K baud CAN network for fast, real-time monitoring. Precision stepper motors deliver smooth, accurate readings with integrated warning lights.
+ -
Order leaves our facility in about 2 Weeks

EV CAN-Bus Dual Gauge (Motor Temp 40–180°F / 0–80°C & Battery Level) reads motor temperature and battery state of charge directly through the CAN network at 500K baud for stable real-time monitoring of thermal performance and remaining charge. Built for clean EV integration, it delivers accurate dual-function data with a clean factory-style look to help track motor heat, monitor battery level, and give you better insight into efficiency and overall system health. A precision stepper motor keeps the pointer smooth, accurate, and easy to read at a glance. Built for long-term reliability, it keeps critical EV data visible in one compact gauge, is made in the USA, and is backed for life.

Warning Light Activation:
Motor Temp warning light turns on above 158°F (70°C)
Battery Level warning light turns on below 15%
Track-Tested. USA-Built. Backed for Life.

Key Features:

  • Direct CAN Motor Temp + Battery Level Data — reads motor temperature and state of charge directly from the CAN network
  • 500K Baud CAN Communication — built for proper integration with supported EV systems
  • Dual-Function Monitoring — tracks motor thermal performance and battery level in one compact, easy-to-read gauge
  • Motor Temp Warning Light — activates above 158°F (70°C) for a clear high-temperature alert
  • Battery Level Warning Light — activates below 15% for a clear low-charge alert
  • Compact Dual-Gauge Design — maximizes dashboard space while keeping critical EV data in view
  • Stepper Motor Precision — smooth, accurate pointer movement
  • Microprocessor-Driven — real-time accuracy
  • Made in the USA — backed by a lifetime warranty
Download Instructions
Built to last. Backed for life.
  • Lifetime warranty on internal circuit board electronics
  • 5-year coverage on sensors and wiring
  • Applies to gauges purchased since Jan. 1, 2006

Every Speedhut gauge includes a lifetime warranty* on the electronic circuit board inside the gauge case. It is the core of the gauge — the part responsible for the precision communication that delivers the accuracy and performance Speedhut is known for.

Sensors, wiring, and other external components are covered by an unlimited 5-year warranty.

This combined lifetime / 5-year warranty applies to the original purchaser.
*For your lifetime — as long as you own the gauge — we stand behind it.
Speedhut Inc warrants products to be free from defects in materials or workmanship. This warranty is limited to repair or replacement. Speedhut Inc is not responsible for incidental or consequential damages. Improper use, installation, or unauthorized modifications void this warranty.
Orion SID’s (500K Baud Rate) (Select zero ev ccs in the Orion Canbus tab)
GaugesEndianStart BitBit LengthScalingOffsetTypeUnitsID HEX
Motor/Inverter TempIntel (Little Endian)321610SignedCelsius0X126
SpeedometerIntel (Little Endian)0160.10SignedMPH0X257
AmpIntel (Little Endian)16160.10SignedAmps0X356
Battery LevelIntel (Little Endian)01610Unsigned%0X355
12 Volt Batt.Intel (Little Endian)32160.10UnsignedVolts0X210
High Volt Batt.Intel (Little Endian)0160.10UnsignedVolts0X356
Battery TempIntel (Little Endian)32160.10SignedCelsius0X356
