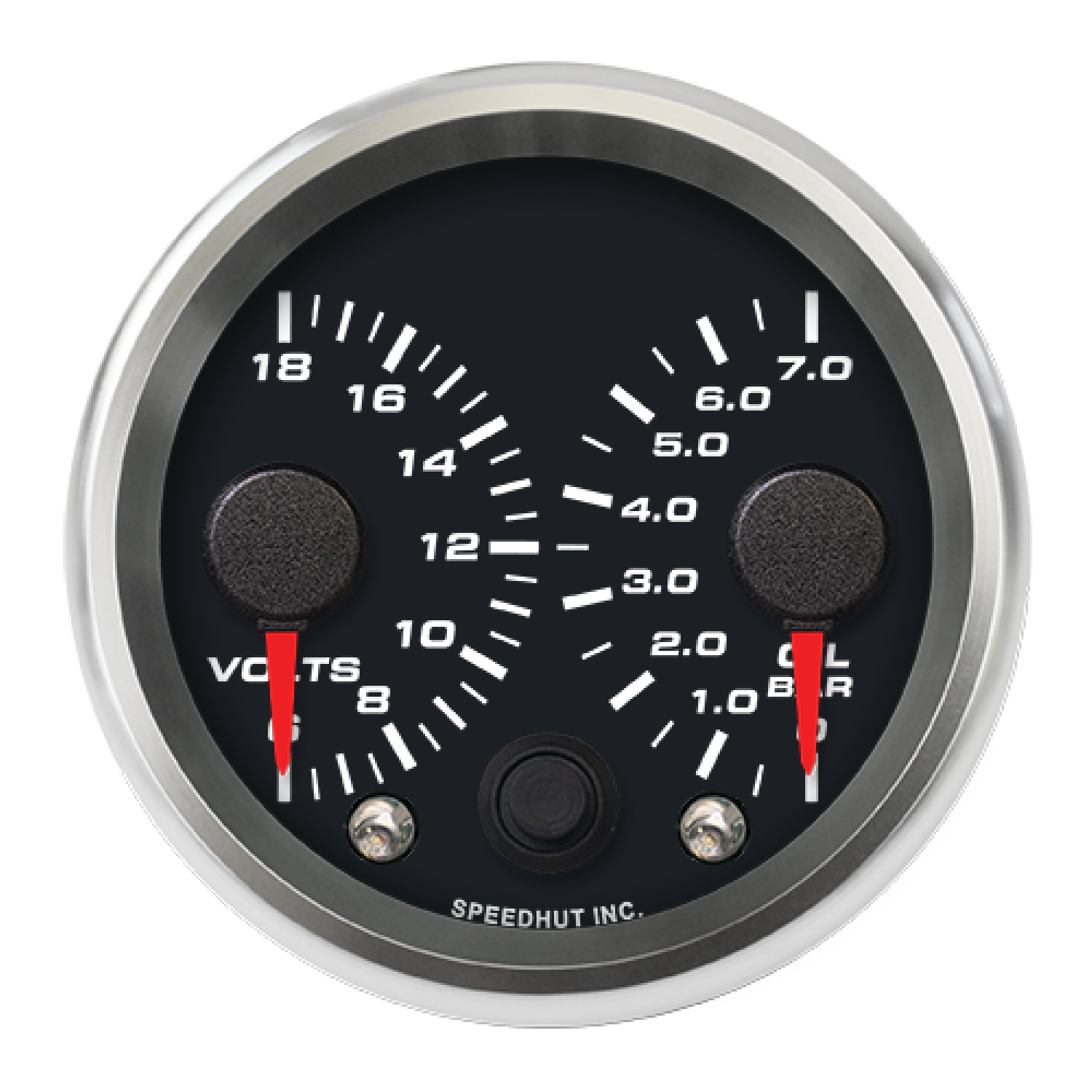

2-5/8" Dual Gauge | Volt + Oil Pressure (Bar)

SKU: R25-DG12-REV
Be the first to review this product
$245.56 USD
Tracks voltage and oil pressure in one compact dual gauge for a cleaner dash and more efficient engine monitoring. Keeps two critical readings easy to track with smooth, stable response from independent precision stepper motors.
+ -
Order leaves our facility in about 2 Weeks

The Dual Gauge combines voltage and oil pressure in one compact instrument so you can keep an eye on two critical systems without adding extra clutter to the dash. It gives you clear, real-time visibility into charging performance and engine oil pressure in a clean, space-saving layout built for street, track, and custom applications. Independent precision stepper motors keep both readings smooth, stable, and easy to trust at a glance.

Key Features:

  • Dual-Function Display — combines voltage and oil pressure in one gauge
  • Charging System Monitoring — keeps battery and alternator performance easy to track
  • Oil Pressure Visibility — helps monitor engine lubrication in real time
  • Space-Saving Layout — delivers more data without crowding the dash
  • Independent Stepper Motors — smooth, stable readings for each function
  • Microprocessor-Driven — real-time accuracy
  • Weather-Resistant Build — built for street, track, and off-road
  • Made in the USA — backed by a lifetime warranty
Download Instructions
Built to last. Backed for life.
  • Lifetime warranty on internal circuit board electronics
  • 5-year coverage on sensors and wiring
  • Applies to gauges purchased since Jan. 1, 2006

Every Speedhut gauge includes a lifetime warranty* on the electronic circuit board inside the gauge case. It is the core of the gauge — the part responsible for the precision communication that delivers the accuracy and performance Speedhut is known for.

Sensors, wiring, and other external components are covered by an unlimited 5-year warranty.

This combined lifetime / 5-year warranty applies to the original purchaser.
*For your lifetime — as long as you own the gauge — we stand behind it.
Speedhut Inc warrants products to be free from defects in materials or workmanship. This warranty is limited to repair or replacement. Speedhut Inc is not responsible for incidental or consequential damages. Improper use, installation, or unauthorized modifications void this warranty.


Ensure you are using our sensor, most other sensors will not work with our gauges.


With the harness disconnected from the sensor and the gauge powered on, measure the voltage across the red and black wires in the harness at the sensor end. Here you should see 4.9-5 volts.


Once you have confirmed the voltage, short the red wire to the white wire, this should make the gauge sweep full scale.


With the harness still disconnected from the sensor, go to key-on or start the car. With the sensor disconnected the gauge should stay at 0 or the bottom of the scale.


If all those turn out normally, next we'll test the sensor. Disconnect the harness from the gauge, and reconnect it to the sensor. Measure voltage between the white wire (signal from sensor) and black wire (ground) and you should see a range between 0.5 to 4.5 volts. You will need to supply power and ground to the sensor while it's disconnected from the gauge. You can use short paperclip pieces if needed.
